Diesel Fuel Conditioning Products Australia - Data Centre Solutions
Molecular-Level Fuel Conditioning Units for Australian Data Centre's
Our Products have been Cleaning Diesel Since 2014 with 100% Effectiveness
OUR PRODUCT RANGE FOR DATA CENTRES

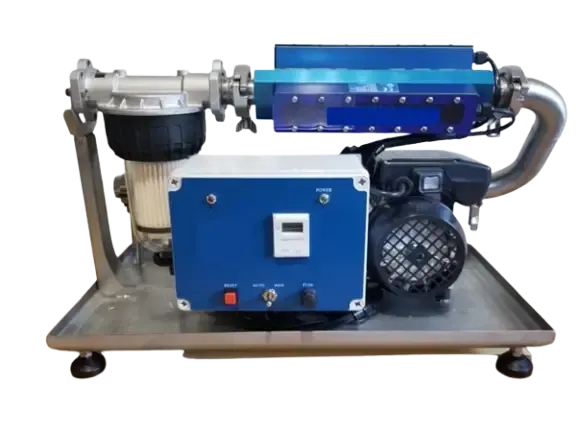

GP600-LP
The GP600-LP 220 A.C. voltage automatic fuel stabilisation/conditioning and filtration system is designed to recirculate and polish diesel fuel.
Using filtration and photochemistry to remove diesel contamination formed by microbial bacteria, fungi and algae that live at the point of blend between water and diesel the GP600 features Flow detection and differential pressure protection.
Great unit for operations using modern engines requiring fuel at the ISO4406 standard such as common rail engines.
Processing capability per hour: 600 Litres
Processing capability of Bulk Storage: 5,000 Litres (new tank or clean diesel)
OPTIONAL: BMS/VMS Interconnection
IO Run Stop Fault with Filter Alarm 4 Output, Cabinet leak 1 output
Optional: SMS Text Message Monitoring : Fault with Filter Alarm 4 Output, Cabinet leak 1 output
RECOMMENDED FOR
Farm tanks, remote back-up power generation, Irrigation pumps, Infrastructure fuel storage, Vessels single tank or multiple tanks under 5000 Litre, mining operations.
SPECIFICATIONS
Weight:6.5 kg (14.5lb) Approx.
Dimensions:
Depth approx: 290mm/11.4 inch
Width approx: 387mm/15. 2 inch
Height approx: 660mm/26 inch
In/out thread:Inlet Diameter:' 3/4 BSP
Outlet Diameter: 1/2" BSP
Operating Voltage:220 VAC

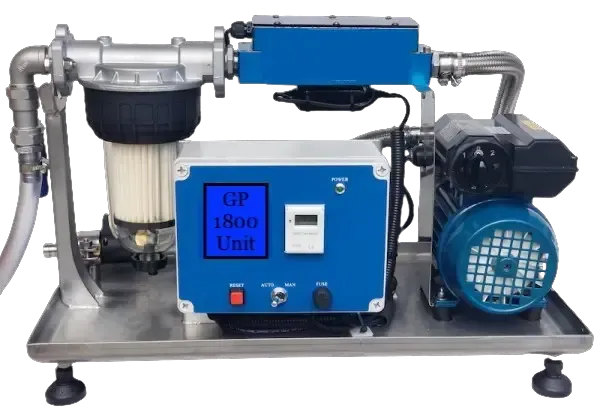

GP1800-LP
The GP1800-LP 220 A.C. voltage automatic fuel stabilisation/conditioning and filtration system is designed to recirculate and polish diesel fuel.
Using filtration and photochemistry to remove diesel contamination formed by microbial bacteria, fungi and algae that live at the point of blend between water and diesel the GP1800 features Flow detection and differential pressure protection.
Great unit for operations using modern engines requiring fuel at the ISO4406 standard such as common rail
engines.
Processing capability per hour: 1,800 Litres
Processing capability of Bulk Storage: 10,000 Litres
OPTIONAL
BMS/VMS Interconnection
IO Run Stop Fault with Filter Alarm 4 Output, Cabinet leak 1 output
OPTIONAL
SMS Text Message Monitoring : Fault with Filter Alarm 4 Output, Cabinet leak 1 output
RECOMMENDED FOR
30 lt/min unit design for Bulk Storage tank installations.
Suit tank sizes up to 10,000 litre Suitable for marine, agricultural and commercial installation with 220 AC Voltage systems.
Ideal for mobile tank cleaning and maintenance operations, mobile marine serving engineers.
SPECIFICATIONS
Weight:12 kg (26.5lb) approx
DIMENSIONS
Depth approx: 290mm/11.4 inch
Width approx: 387mm/15. 2 inch
Height approx: 660mm/26 inch
In/out thread:Inlet Diameter:1” BSP Outlet Diameter: 3/4” BSP
Operating Voltage:220 VAC
GP3000/4500/6000
The GP3000/4500/6000 series are self-contained automatic Fuel Conditioning Systems designed to recirculate and polish stored diesel fuel using filtration and photochemistry to remove diesel contaminations formed by microbial bacteria, fungi and algae that live at the point of blend between water and diesel.
Processing Capacity Litres per hour: 3000, 4500, 6000 Litres
Processing of Bulk Storage: 18,000, 21,000, 28,000 Litres
OPTIONAL
BMS/VMS Interconnection
IO Run Stop Fault with Filter Alarm 4 Output, Cabinet leak 1 output
OPTIONAL
SMS Text Message Monitoring
Fault with Filter Alarm 4 Output, Cabinet leak 1 output
RECOMMENDED FOR
GP3000-50 lt/min unit design for new single tank installation. Suit tank size up to 18,000 Litres
GP4500-75 lt/min unit design for new single tank installation.
Suit tank size up to 21,000 Litres
GP6000-66 lt/min unit design for new single tank installation. Suit tank size up to 28,000 litres
SPECIFICATIONS
Weight:(Approx)
GP3000: 21.3kg
GP4500: 22.3kg
GP6000:23.3kg
DIMENSIONS
Depth approx: 290mm/11.4 inches
Height approx.: 387mm/15.2 inches
Width approx.: 660mm/26 inch
In/out thread:Inlet Diameter: 1” BSP, Outlet Diameter: 1” BSP
Operating Voltage:230 VAC
GPC3000/4500/6000 Commercial Series
The GP3000/4500/6000 Commercial series are a high-grade self-contained Manual/Automatic Fuel Conditioning system designed to recirculate, and polish stored diesel fuel using a stainless-steel housed filtration and photochemistry to remove diesel contamination formed by microbial bacteria, fungi and algae that live at the point of blend between water and diesel.
Processing Capability Daily Tanks per hour
3000 Litres
4500 Litres
6000 Litres
Processing Capability of bulk storage
18,000 Litres
21,000 Litres
28,000 Litres
SUPPLIED WITH UNIT
Operating instructions
Spare Filter Lid O-Ring
2x male camlock fittings, to fit 1’ inch hose.
4x threaded levelling feet.
Fitted inside filter (25micron filter bag) plus 1 spare.
Flow failure protection.
OPTIONAL EXTRAS
System start and stop is expandable with 2 of “Key Fob” style remotes
"BMX" Style Cart wheels for ease of movement on undulating surfaces.
BMS/VMS Interconnection
IO Run Stop Fault with Filter Alarm 4 Output, Cabinet leak 1 output
SMS Text Message Monitoring
Fault with Filter Alarm 4 Output, Cabinet leak 1 output
RECOMMENDED FOR
Processing of Bulk Fuel Storage facilities for tank sizes of up to 18,000, 21,000,28,000 Litres depending on unit.
SPECIFICATIONS
Dimensions:
Depth: 580mm/ 22.83 inch
Height: 1120mm/ 44.1 inch
Width: 520mm/ 20.47 inch
In/out thread:Inlet Diameter: 1” BSP, Outlet Diameter: 1” BSP
Operating Voltage:230 VAC
GP12000 Commercial
The GPC 12000 Is a commercial use high-grade self-contained Manual/Automatic Fuel Conditioning system designed to recirculate, and polish stored diesel fuel using a stainless-steel housed filtration and photochemistry to remove diesel contamination formed by microbial bacteria, fungi and algae that live at the point of blend between water and diesel.
Processing Capability Litres per hour:12,000.
Processing Capability of bulk storage: 57,000 litres
SUPPLIED WITH UNIT
Operating instructions
Spare Filter Lid O-Ring
2x male camlock fittings, to fit 1’ inch hose.
4x threaded levelling feet.
Fitted inside filter (25micron filter bag) plus 1 spare.
Flow failure protection.
OPTIONAL EXTRAS
System start and stop is expandable with 2 of “Key Fob” style remotes.
"BMX" Style Cart wheels for ease of movement on undulating surfaces.
BMS/VMS Interconnection
IO Run Stop Fault with Filter Alarm 4 Output, Cabinet leak 1 output
SMS Text Message Monitoring
Fault with Filter Alarm 4 Output, Cabinet leak 1 output
RECOMMENDED FOR
Processing of Bulk Fuel Storage facilities for tank size up to 57,000 Litres
SPECIFICATIONS
In/out thread:Inlet Diameter: 2” BSP, Outlet Diameter: 2” BSP
Operating Voltage:230 VAC
Results You Can Count On
Our goal is to provide the highest level of service and ensure your complete satisfaction. We pride ourselves on our professionalism, attention to detail, and commitment to customer care.
From the moment you contact us to the completion of your repair, we’re dedicated to making the process as smooth and stress-free as possible.
Molecular Level Technology
FuelZap delivers comprehensive contamination elimination services for diverse fuel systems, from critical data center generators
FuelZap Diesel Solutions
Our team maintains cutting-edge expertise through continuous training on the latest fuel contamination detection and elimination technologies
Longevity
Zero moving parts, zero maintenance just reliable fuel protection.
Built for 80,000+ hours of continuous operation using premium materials.
Proven technology that protects your equipment while you focus on business.
